Ring Snap Dies for Line 20 and 24 Snaps

Ring Snap Dies for Line 20 and 24 Snaps



Ring Snap Button Dies for Hand Press

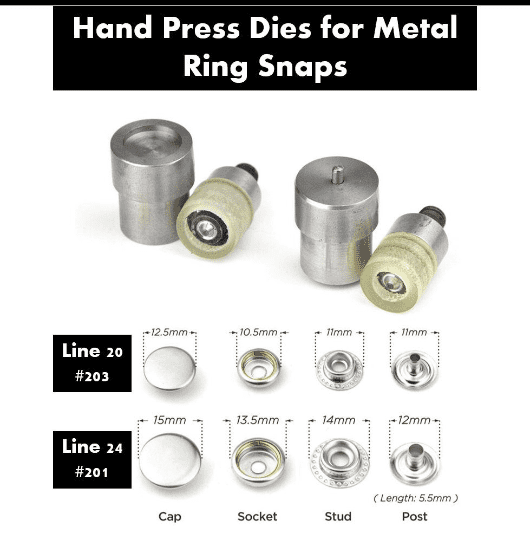

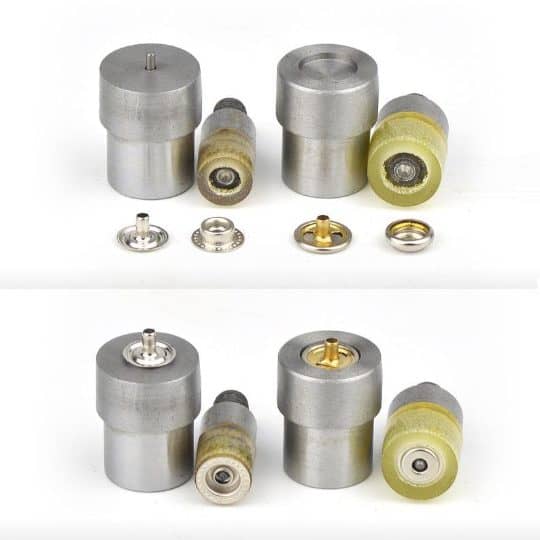

Our Ring Snap Button Dies for our hand press machines are constructed of high quality tool steel used for setting Line 20 (#203, 12.5mm) and Line 24 (#201, 15mm) snap buttons. The hole punch die is use for pre-punching your holes into your material and is suitable for cutting a wide variety of materials including leather, vinyl, kydex, thin softer metals, paper, and fabrics. For thinner fabrics and leathers that are more pliable we recommend using a piece of cardboard under the material to add stiffness for a clean punch. Pricing include both the top and base components.

Metal Snap Button Dies:

Incudes 4 pieces

Ring Snap Dies:
#203 Line 20 (12.5mm) Snap Die
#201 Line 24 (15mm) Snap Die

Hole Punch Dies:

2mm Hole Punch Press Die (for 4mm and 5mm crystals, rivets, and eyelets)
3mm Hole Punch Press Die (for 6mm+ crystals and rivets, snaps, and 3mm eyelets)

Die Sizing and Machine Compatibility:

Our dies fit machines with an M8 (8mm diameter) threaded top receiver and a 19mm bottom receiver. Some of the standard model machines will have a removeable bushing in the base receiver that will need taken out.

Some of the press machines our dies are compatible with:

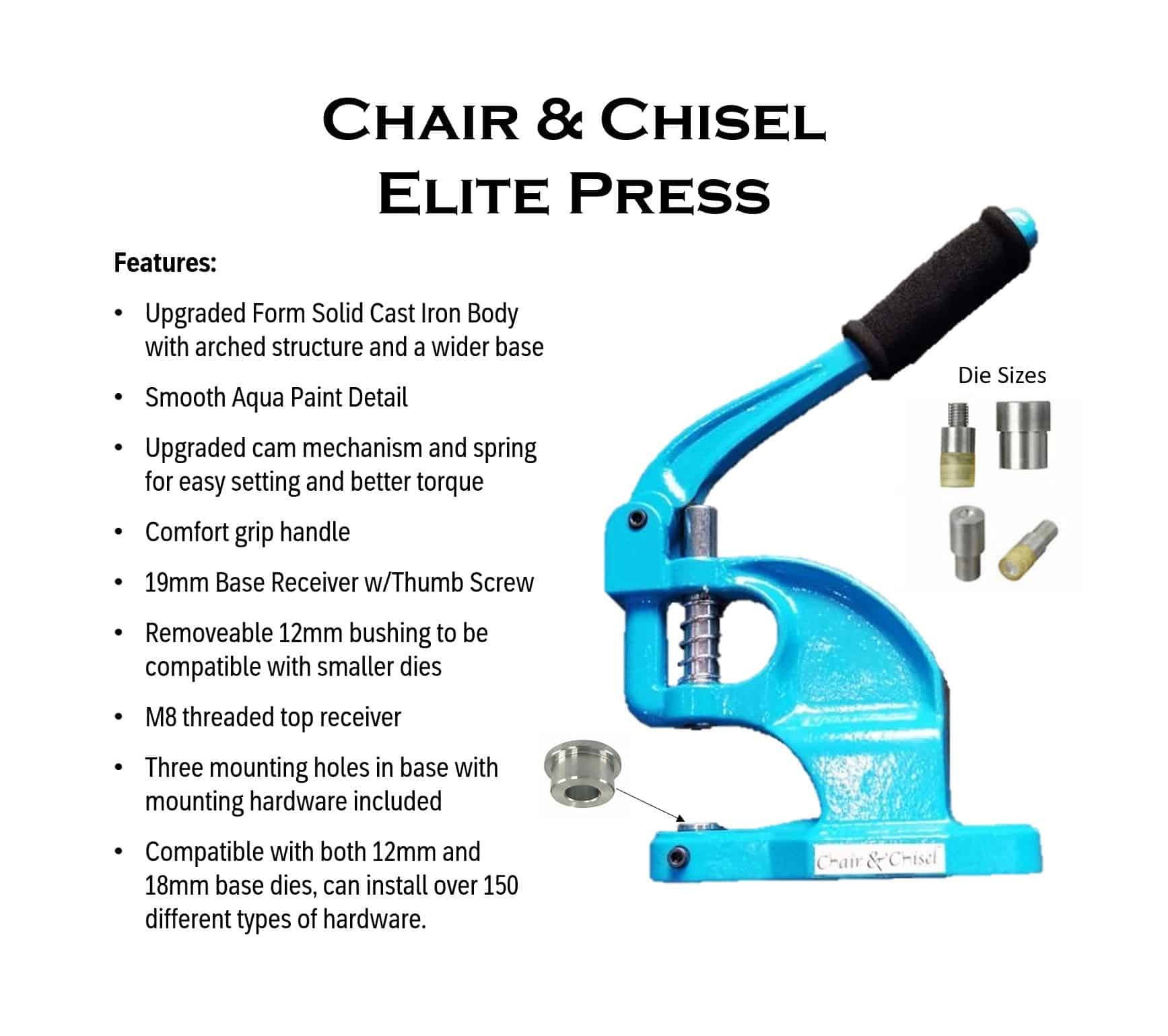

  • Chair & Chisel Elite Press
  • Green Machine Hand Press
  • Tabletop Lite Hand Press
  • KAMsnaps DK93 Professional Table Press
  • Stimpson 405 *with adapter
  • Weaver Foot Press *with adapter
  • Skemix, Flexzion, Yescom, 8milelake, Jaketen, WuXing, Green Machine Hand Presses
  • SnapS Tools KST-02 Press Machine
  • CStep-2

*This list is not all inclusive there are many press models out there. Our dies are the most standard for fitting most presses. If you are unsure which press you have it is best to measure the receiver hole diameters and compare to our dies.

Using our Press and Dies Tutorial Videos:

Hand Press Set-up Instructions
Overview of our Press Machine and Dies
Setting Square Crystal Rivets with a Hand Press</a
An Overview of methods for setting Crystals and Eyelets/Grommets
Setting Single Cap Rivets with a Hand Press
Best Practices and Troubleshooting setting Cap Rivets

Looking for Double Cap Rivet press dies?

Check out our other Die Listings And Bundle Packs:

Hand Press Machine for Setting Crystals, Rivets, Grommets, and Snaps

Hole Punch Dies for Hand Press

Crystal Rivet Dies for Hand Press

Eyelet and Grommet Dies for Hand Press

Rivet Press with 8 Die Sets, Rotary punch, Rivets, and Eyelets

480pc Double Cap Rivet Kit

Looking for Hand Tools?

Cap Rivet Setter Hand Tool

Overview of our press machine and dies:
